AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory /

Name: AC22050Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory
Brand: Nage
Price: 13 USD

Quality AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory / wholesale

Brand Name : Nage

Place of Origin : Anhui, China

Certification : CE certificate SGS certificate

Supply Ability : 20 Set/Sets per Week

Packaging Details : Machines will bew wrapped in professional seaworthy wooden cases Package size will depend on each model size.

MOQ : >=1 Sets

Price : $13,000.00

Condition : New

Applicable Industries : Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms

After Warranty Service : Video technical support, Spare parts

Voltage : AC220/50Hz

Power(W) : 2000

Dimension(L*W*H) : 1724*1536*1690

Weight : 690KG

Warranty : 1 years

After-sales Service Provided : Field installation, commissioning and training

Application fields : Snack food factory, Meat processing plants, Fruit processing plant, Vegetable processing plant, Seasoning plant

Machinery Function : sorting and separating

Raw material : Fruit, Corn, Wheat, Vegetables, Soybean

Output product name : Nage

Name : 2020 New Model Lentils Color Sorters Machine

Application : Food Industry

Product name : Color Sorter Machine

Usage : Food Industry Equipment

Capacity : Diffrent Capacity

Keywords : 2020 New Model Lentils Color Sorters Machine

Feature : High Efficiency

Package : Wooden Case

Advantage : Easy Operation High Efficiency

Shipping type : Ocean

Contact Now

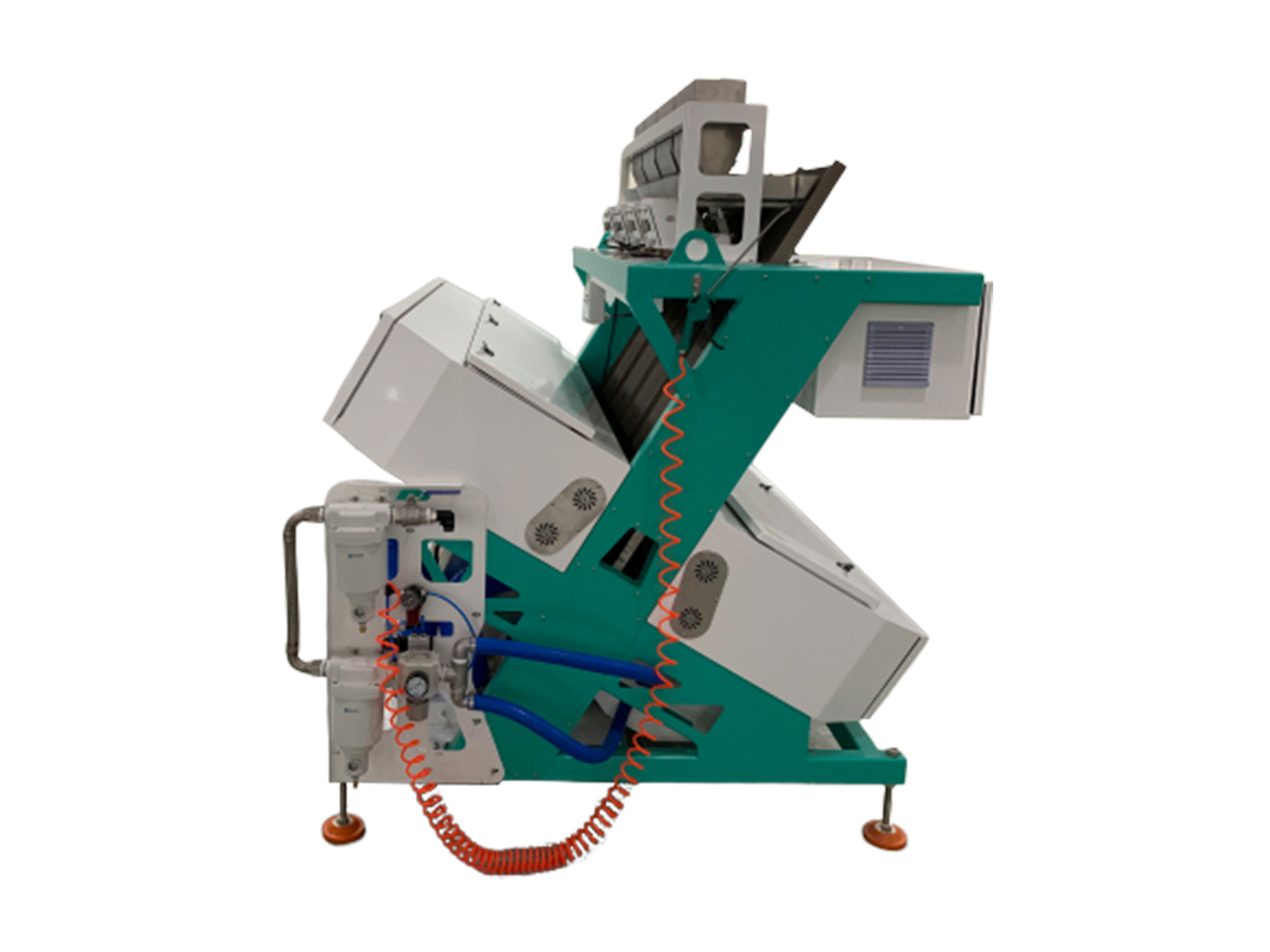

2020 New Model Lentils Color Sorters Machine

Product Description

Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper. In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.

AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory /

OUR COMMITMENTS

Focus on the field of color sorting and lead the industry standards; Create unlimited possibilities. Analyze every detail and select every raw material.Multi-function,multi-purpose,widely used for rice,grain,cereal, plastics,etc.

Examples of color sorting

The targeted sorting technology ensures no defect of light yellow would be missed from a million grains of rice. Standard edition with the Spectrum Confocal 2.0 removes glass, desiccants, transparent plastics and motley plastics. Flagship edition with the InGaAs Infrared system custom for rice sorting eliminates foreign materials.

Detailed Images

FOCUS 1:

5400-pixel CCD camera makes sure that, it is able to recognize more accurately,analyze more quickly and sort more precisely The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.

FOCUS 2:

Imported high-quality solenoid valves makes machines work more stably for longer time. The new type of high frequency valve allows low consumption of electricity , high durability,and easy maintenance.

FOCUS 3:

Humanized touch panel,which is easier to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.

It is also able to support for multiple languages, preservation and switching of multiple color selection modes

FOCUS 4:

American ultra-high speed FPGA processor, 3D intelligent identification technology.Intelligent system with
self-learning,self-operating Powerful image processing algorithm can accurately identify the color and shape of materials.

Size Information

model	6SXM-64	6SXM-128	6SXM-192	6SXM-256	6SXM-384
chutes, No.	64	128	192	256	384
product output	0.5-1.5	1.0-2.5	2.0-4.5	3.0-6.5	4.0-10.0
sorting accuracy	99.9	99.9	99.9	99.9	99.9
optimized carryover	8:1	8:1	8:1	8:1	8:1
weight(kg)	320	510	690	870	1230
minium identification	0.03	0.03	0.03	0.03	0.03
power (kw)	1	1.5	2	2.5	3.5
power supply (v/hz)	AC220/50	AC220/50	AC220/50	AC220/50	AC220/50
Dimension (lwh)mm	91014761629	141415361726	172415361690	208515361690	271515361690

NOTE:
1.The above data is based on 5% contamination Coarse Cereals material.The real output depends on different materials and contamination. 2.1f products update,no further notice.Please refer to the real machine.

AC220/50Hz 2000W Lentil Color Sorter Two CCD Cameras For Snack Food Factory /

Packing&Shipping

Machines will bew wrapped in professional seaworthy plywood cases Package size will depend on each model size.

After Sales Service

We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to
ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.

Company Introduction

Hefei Branagh Photoelectric Technology Co.,Ltd. is a high-technology firm, which combined with design, manufacture and selling, Our firm is dedicated to providing high reliability, high quality, safety and easy-to-operate sorting machines for customers in the field of food and industrial.We have a team that is determined to make progress and keep innovating to form a business model that is oriented toward quality, efficiency ,and customer satisfaction. Through countless hardwork, we serve customers from all over the world. We are well-established in both domestic and foreign markets. Our products sold well in our country and exported to Asia,Africa,Europe,America,Australia,more than 80 countries. Now we are enjoying the high reputation in manufacturing circle.We would be pleased to enter into business relations with you!

Certificates and Patents

FAQ

1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.

2. How long about the warranty period?
One year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the related spare parts,such as,ejectors, air compressors, CCD cameras, and solenoid valves?
Yes, we can provide above equipments for free within one year.

4. Is overseas service available?
Yes, our engineers could go abroad when required.
